Description
Alliance IT2-300 Intelligent Transformer
Low Voltage power supply suitable for indoor and outdoor use.
Next-generation transformer and app-driven control system in a single easy-to-install package. Controlled with the Alliance ITPro app through Bluetooth or WiFi for remote on/off control and set-up of lighting schedules. Ability to manage up to 3 different independently scheduled lighting zones in a single transformer for maximum flexibility and energy savings.
Key Features:
App-controlled for on/off remote control and scheduling
Up to 3 individually-scheduled zones for maximum lighting control (example: front walk, tree lighting, fountain lighting)
Astronomic timing (sunrise/sunset adjusted automatically), plus clock-based on/off
Settings saved to the cloud in case of power interruption
Maximum control range. Discreet integrated external antenna plus dual control with Bluetooth or WiFi. (WiFi is optional, not required)
Digital power meter (in app) displays real-time power consumption and history

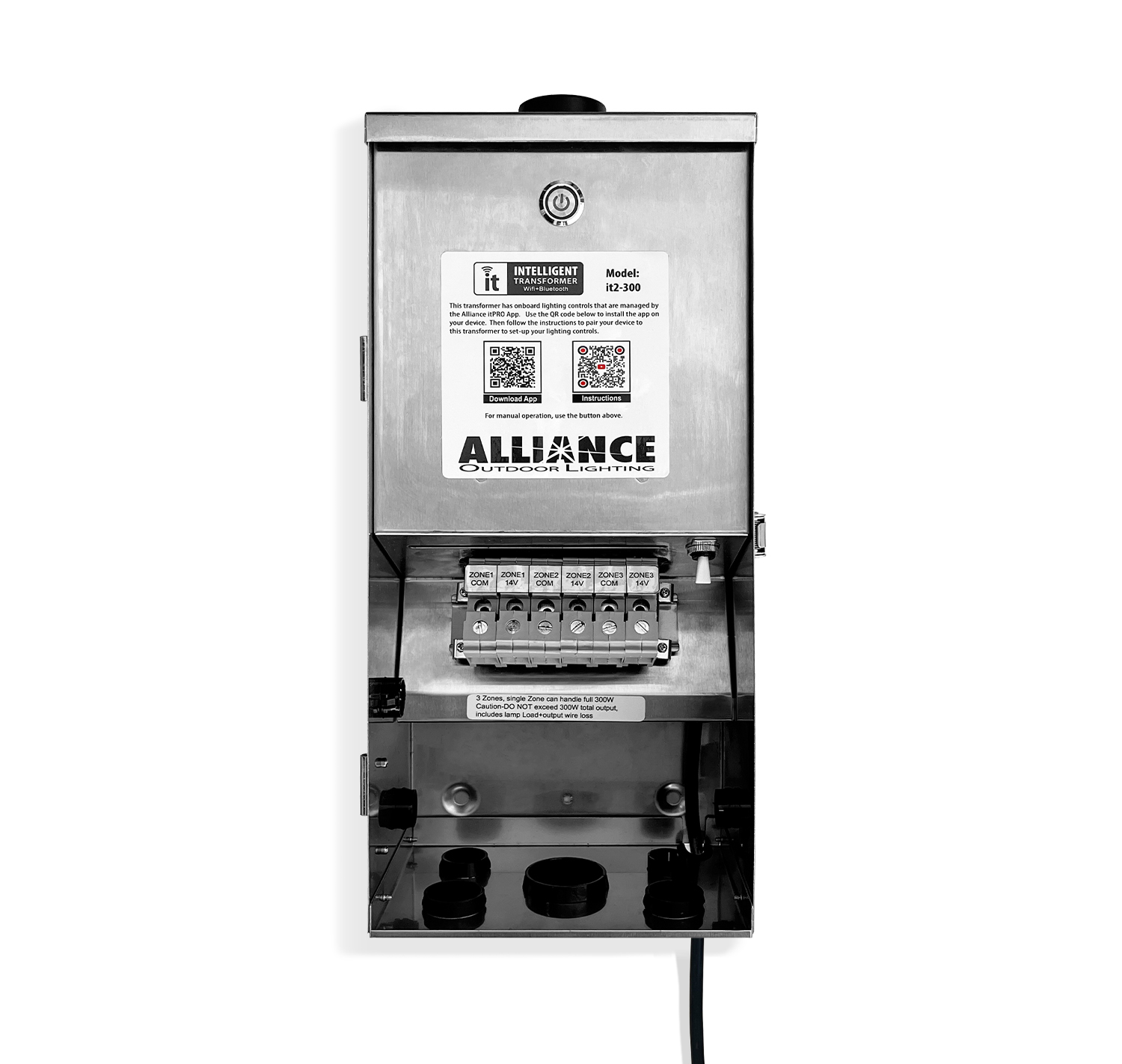

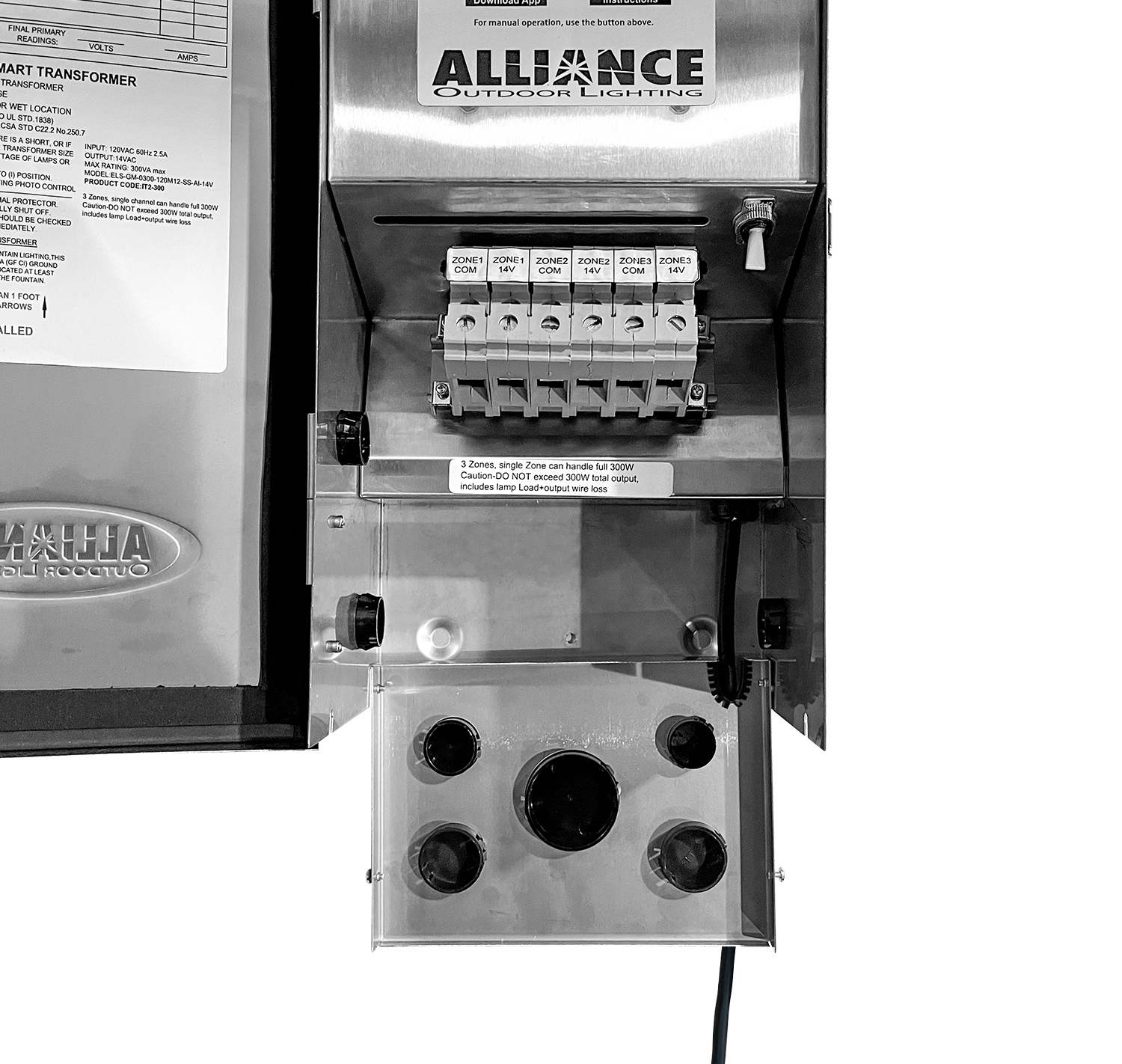

Angled terminal strip for easy wire connections, eliminates blind spots
Removable bottom panel, 5 knockouts for wire connections

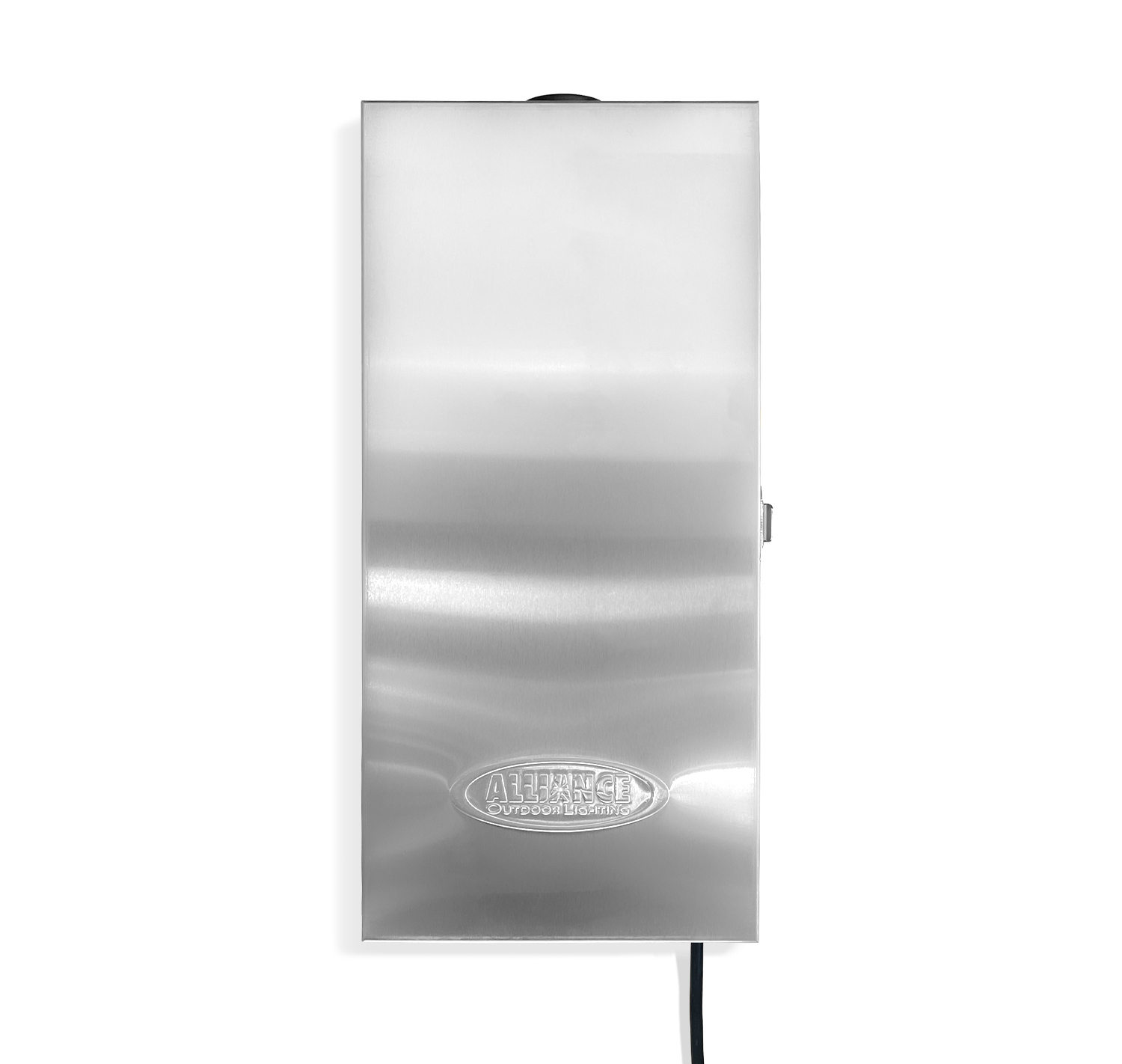

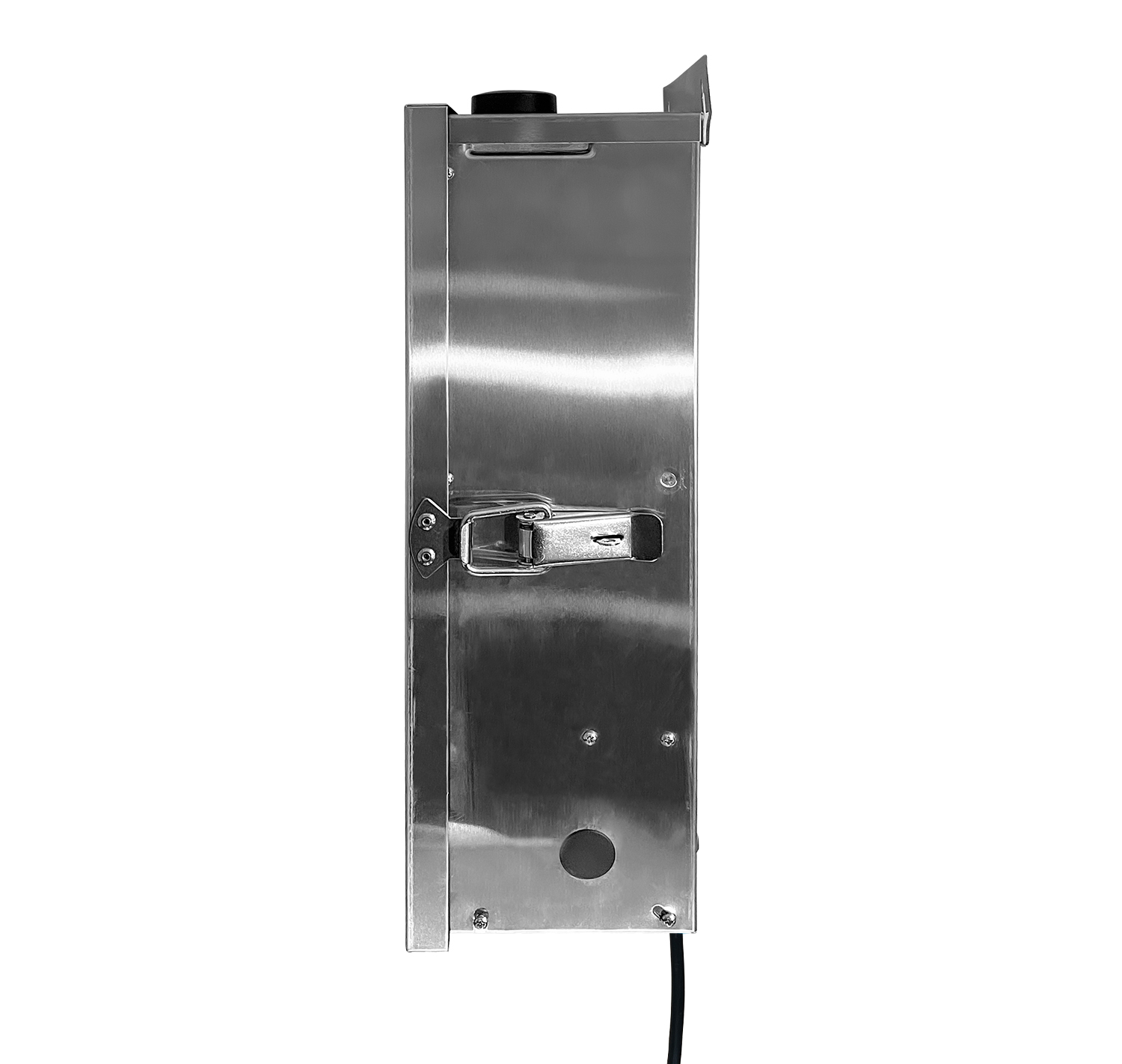

Heavy-duty stainless-steel cabinet with integrated mounting bar, lockable
Integrated short circuit and overload protection
Includes 5’ grounded heavy-gauge power cord
ETL tested, in conformance to ANSI/UL 1838
ELECTRICAL SPECIFICATIONS
300 watts with 3 taps of 14 volts. Maximum total amps: 3A. Use any combination of terminal lugs but do not exceed transformer’s rated wattage on any lug.
DIMENSIONS
HEIGHT ON WALL 16"
WIDTH 7.25"
DEPTH 5.12"
